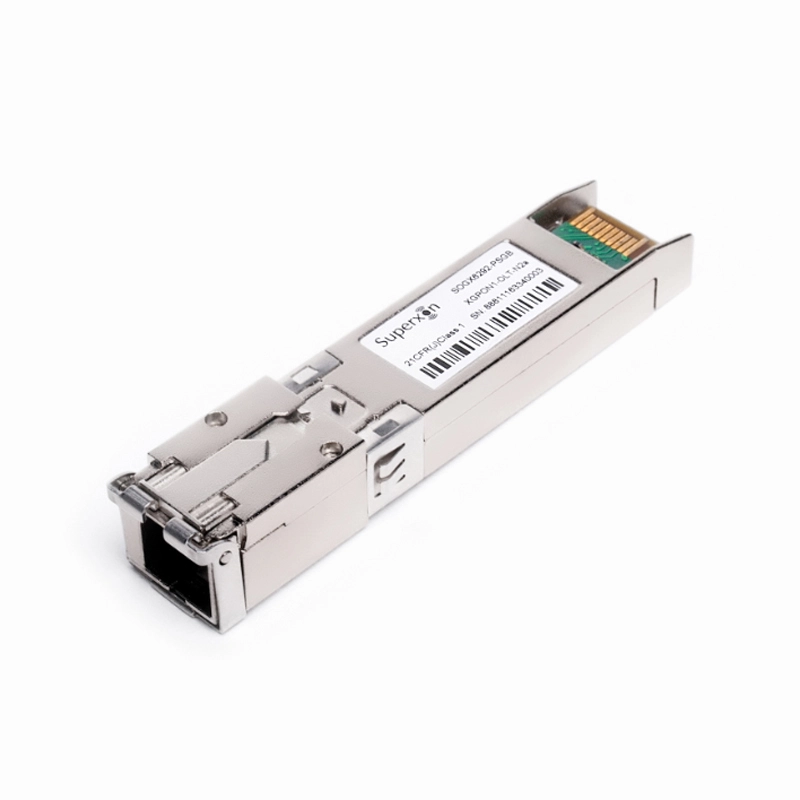

Compatible with GPON &XGPON system. Work in GPON & XGPON system simultaneously.
XGPON: Single fiber bi-directional data links TX 9.95Gbps, RX 2.488Gbps application. GPON: Single fiber bi-directional data
links asymmetric TX 2488Mbps/RX1244Mbps application
0 to 70°C operating case temperature
3.3V power supply
SFP+ package with SC Receptacle connector
Hot-pluggable capability
XGPON: High power 1577nm EML LD & High sensitivity 1270nm APD. GPON: 1490nm DFB LD & High sensitivity 1310nm
APD
Support 20km transmission distance with SMF
SD indication for GPON&XGPON from the professional optical transceiver manufacturers
Low EMI and excellent ESD protection
Digital diagnostic monitor interface
RoHS6 compliance
| Parameter | Symbol | Min. | Max. | Unit | Notes |
| Storage Ambient Temperature | TsTa | -40 | 85 | ℃ | |
| Operating Case Temperature | Ta | 0 | 70 | ℃ | |
| Operating Humidity | OH | 5 | 85 | % | |
| VCC3 Power Supply Voltage | VCC3 | 0 | 3.6 | V |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
| Operating Case Temperature | Tc | 0 | +70 | ℃ | ||
| VCC3 Power Supply Voltage | VCC3 | 3.13 | 3.3 | 3.47 | V | |
| Date Rate | XGPON GPON | 9.953/2.488 2,488/1.244 | Gbps Gbps | |||
| Power Consumption | P | 3.3 | W |
